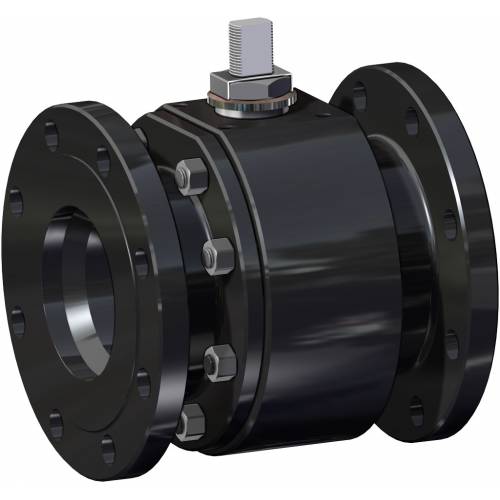

วาล์วบอล THOR แบบสปลิทบอดี ANSI 150-300 รูรับจำกัด ผลิตจากเหล็กกล้าคาร์บอน

1. Antistatic device (electrical continuity between ball, stem and body)
Static electricity is avoided which can cause sparks and fire in an inflammable/explosive environment
Contact safety throughout the entire life of the valve

2. Double antifriction washer
Less Breakaway Torque is granted
Less wear comparing with the execution with the single washer

3. "V" seals pack; 3 seals + o-ring
It ensures a perfect tightness even after a high number of cycles

4. Spring washer on the shaft seal
Guarantee of the recovery of the gap due to the wear caused by the rotational movement of the shaft avoiding leakage towards the outside part.
Allow to maintain energized the "chevron" seals (V), thus avoiding any leakage to the outside, against huge temperature excursions

5. Stretch Graphite seal
Tightness towards outside is granted, independently by the thermal excursions to which the valve is subjected

Greater precision in the alignment of axes due to a unique positioning in the process machining from raw material to finished valve
Longer lifetime of the valve
Less breakaway torque

Easy maintainance directly on site
Reduced maintainance costs

Valve body in carbon steel made with NACE certified material as standard
Greater corrosion resistance
Greater ductility of the material

100% in- house manufacturing process technology
Maximum control and accuracy in all the stages of the manufacturing process
Flexibility in supply quickly special executions requested by customers

"Fire safe" Certificate
Guarantees the tightness of the valve also in case of fire

ATEX Certificate
Installation is possible in a potential explosive environment

TA LUFT fugitive emission Certificate
High level of safety of the tightness towards the outside is granted

PED Certificate
Full compliance with European Safety Standards for Pressure Equipment

UP to SIL 3 certified
Guarantee of the high level of functional safety
